Repair & Recoating

Tiaano, a well-equipped in-plant facilitated company, delivering Titanium Anodes, Nickel & Stainless Steel Cathodes for Repair, Rectification & Recoating by using Precious metal oxides of…

• Undertaking the refurbishment and recoating of Chlor-alkali electrodes since 1994.
• Coating guarantee starts from minimum of 6 years, maximum 10 years according to the current density.
• Suitable for current densities in excess of even 9 kA/m2.
• Tiaano preparing metal chlorides in its own refinery from the precious metal sponge.
• Tiaano’s coatings are working more than decades in…

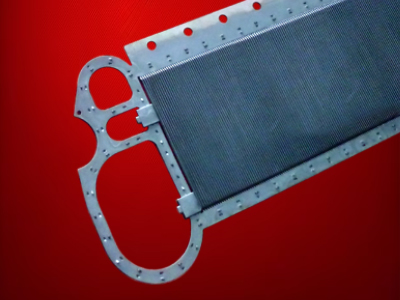

1. INEOS / ICI Cells.
2. AGC (Asahi Glass) Cells.
3. AKCC (Asahi Kasei) Cells.
4. LURGI / CHEMETICS / KERBS Cells.

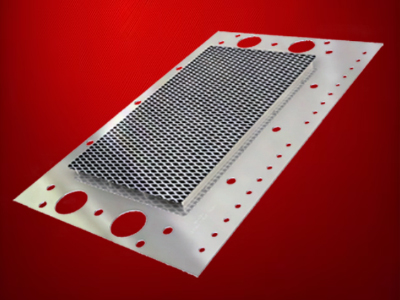

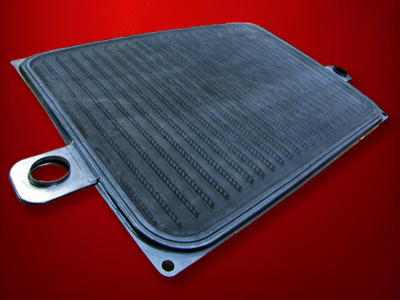

5. ELTECH / OXYTECH / DENORATECH Cells.

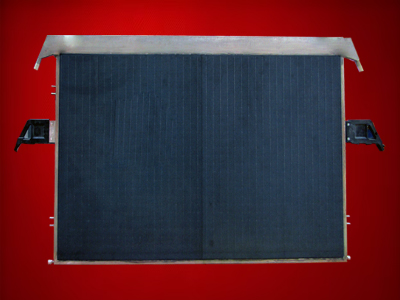

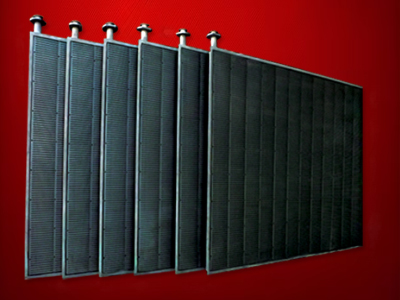

6. UHDE / UHDENORA / DENORA / CEC Cells.

Features of Anode Coating:

• Low Oxygen coating, sensitive and low chlorate production.
• Suitable for all cell technologies like UHDE, CEC, ICI, ELTECH, INEOS, Asahi Glass, Asahi Kasei, Lurgi, JOC and Bluestar.
• Suitable for current densities from 4 kA/m2 to 6 kA/m2.
• Excellent stability of the MMO coated Titanium anode improves the product purity and maintenance costs.
• Substantially reduces energy consumption.
• Improves the product quality & extends the life of anode.
• Operates at low voltage.
• Minimizes energy consuming side reactions.
• Improves tolerance of operational upsets.

Features of Cathode Coating:

• Tiaano provides cathode coating for membrane cells. This platinum-based electro catalyst is the most important factor for achieving effective and durable energy savings.
• It is expected to achieve a current density, increase from less than 4 kA/m² to more than 6 kA/m².
• Tiaano’s cathode coating also provides excellent wear resistance and long life through a permanent coating, which causes no caustic contamination.
• Tiaano’s cathode coating has an exceptionally high resistance to reverse element, making it an ideal cathode coating for all zero gap electrolyzer.
• Tiaano’s cathode coating can be applied over a variety of substrates including expanded mesh, louvers, sheet, perforated plate & screen and in all Chlor-alkali membrane technologies.
