Electrolyzer

Input (Raw materials)

  • Capacity    : Refer the enclosed cell selection guide
  • Raw Material per ton of Cl2
    1. NaCl    : 2.0 Tons
    2. Electricity   : 2.5 kWh (Cells 2.2 + Auxiliary units 0.3)
    3. Water    : 1.5 M3.
    4. Chemical   : Treatment chemicals as required.

Material of construction

  • Operating CD    :  4.0 kA / M2
  • Anode Substrate   : Titanium as per ASTM B 265 Gr. 2
  • Cathode Substrate  : Nickel as per ASTM B 162 Gr. 201
  • Catalyst MOC     : Platinum group precious Mixed Metal Oxide.
  • Deposition      : Thermal Decomposition process.
  • Surface        : Expanded Mesh.


Model Number DC Power Consumption in KWh Production Capacity
Cl2 (100 %) Kgs / Hr. NaOH (32 %) Kgs / Hr. H2 Kgs / Hr. NaOCl2 (12.5 %) M3/ Hr. Cl2 (100 %) Kgs / Day NaOH (32 %) Kgs / Day H2 Kgs / Day NaOCl2 (12.5 %) M3/ Day
Tiaano Bleach E / 0.10 1.40 0.47 0.51 0.01 0.004 11.23 12.36 0.31 0.09
Tiaano Bleach E / 0.25 3.50 1.17 1.29 0.03 0.010 28.08 30.89 0.79 0.23
Tiaano Bleach E / 0.50 7.00 2.34 2.57 0.07 0.020 56.16 61.78 1.57 0.09
Tiaano Bleach E / 0.75 10.5 3.51 3.86 0.10 0.029 84.24 92.66 2.36 0.70
Tiaano Bleach E / 1.00 14.0 4.68 5.15 0.13 0.039 112.32 123.55 3.14 0.94
Tiaano Bleach E /2.00 28.0 9.36 10.30 0.26 0.078 224.64 247.10 6.29 1.87
Tiaano Bleach E / 3.00 42.0 14.04 15.44 0.39 0.117 336.96 370.66 9.43 2.81
Tiaano Bleach E / 4.00 56.0 18.72 20.59 0.52 0.156 449.28 494.21 12.58 3.74
Tiaano Bleach E / 5.00 70.0 24.70 27.17 0.69 0.206 592.80 652.08 16.60 4.94
Tiaano Bleach E / 6.00 84.0 29.64 32.60 0.83 0.247 711.36 782.50 19.92 5.93
Tiaano Bleach E / 7.00 98.0 34.58 38.04 0.97 0.288 829.92 912.91 23.24 6.9
Tiaano Bleach E / 8.00 112.0 39.52 43.47 1.11 0.329 948.48 1043.33 26.56 7.90
Tiaano Bleach E / 9.00 126.0 44.46 48.91 1.24 0.371 1067.04 1173.74 29.88 8.89
Tiaano Bleach E / 10.00 140.0 49.40 54.34 1.38 0.412 1185.60 1304.16 33.20 9.88
Tiaano Bleach E / 15.00 210.0 74.88 82.37 2.10 0.624 1797.12 1976.83 50.32 14.98
Tiaano Bleach E / 20.00 280.0 99.84 109.82 2.80 0.832 2396.16 2635.78 67.09 19.97
Tiaano Bleach E / 26.00 364.0 129.79 142.77 3.63 1.080 3115.01 3426.51 87.22 25.96
Tiaano Bleach E / 30.00 420.0 149.76 164.74 4.19 1.250 3594.24 3953.66 100.64 29.95
Tiaano Bleach E / 40.00 560.0 199.68 219.65 5.59 1.660 4792.32 5271.55 134.18 39.94
Tiaano Bleach E / 51.00 714.0 254.59 280.05 7.13 2.120 6110.21 6721.23 171.09 50.92

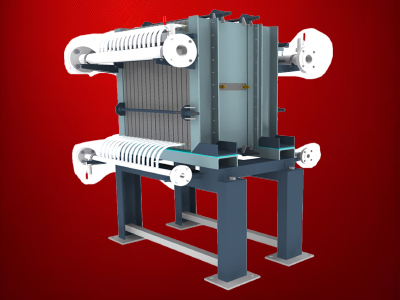

Membrane Electrolyzer
Membrane Electrolyzer

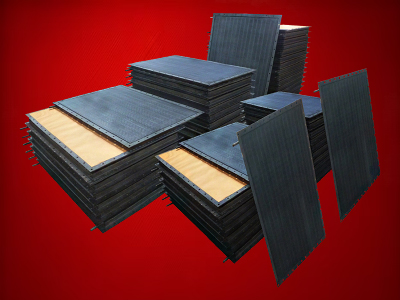

Membrane Anode for Bleach
